油田熱媒加熱爐： 負荷供熱能力50----1500×104kcal/h， 導熱油的出口溫度：≤350℃
Oilfield heat medium heating furnace: load heating capacity 50-1500 × 104kcal/h, outlet temperature of heat transfer oil: ≤ 350 ℃
主要用于油氣集輸系統過程中，將原油、天然氣等加熱到工藝要求的溫度，以便進行輸送、沉降、分離、脫水和初加工。
Mainly used in oil and gas gathering and transportation systems to heat crude oil, natural gas, etc. to the required temperature for transportation, settling, separation, dehydration, and initial processing.

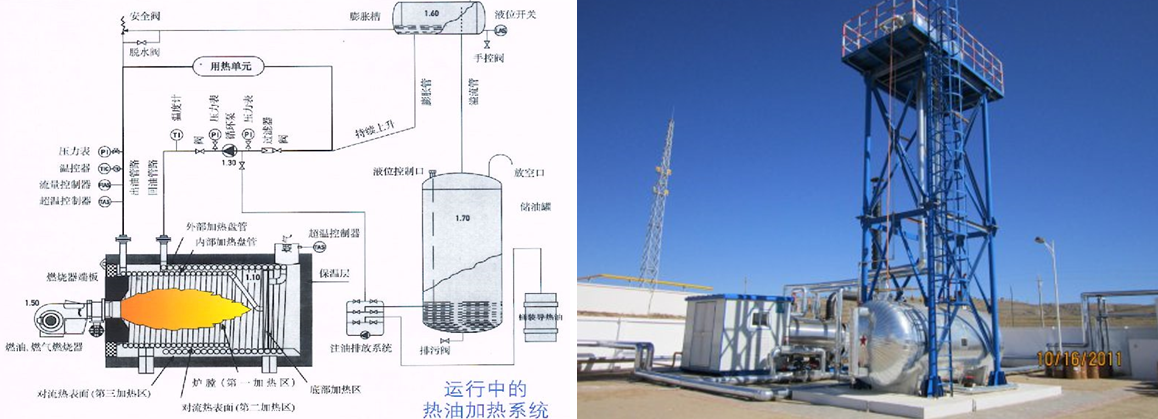

熱媒加熱系統主要由熱媒加熱爐（有機熱載體爐）、儲油罐、膨脹罐、循環泵、注油泵、氮封系統、控制系統等組成，且各自分別成撬供貨。
The heat medium heating system mainly consists of a heat medium heating furnace (organic heat carrier furnace), an oil storage tank, an expansion tank, a circulation pump, an oil injection pump, a nitrogen sealing system, a control system, etc., and they are supplied separately.
熱媒加熱爐采用三煙道半濕背式設計。熱量通過燃燒器在爐膛內燃燒并以輻射熱和對流換熱的方式傳遞給熱媒，載熱熱媒通過循環系統運送到熱用戶，在熱用戶換熱卸載后再循環回到熱媒爐加熱；如此往復以熱媒為載體實現熱量傳遞，膨脹罐、循環泵及控制系統為系統不可缺少的輔助設備。
The heat medium heating furnace adopts a three flue semi wet back design. Heat is burned in the furnace through a burner and transferred to the heat medium through radiative heat and convective heat exchange. The heat carrying heat medium is transported to the heat user through a circulation system and is recycled back to the heat medium furnace for heating after the heat user unloads the heat exchange; By using heat medium as a carrier to achieve heat transfer, the expansion tank, circulation pump, and control system are indispensable auxiliary equipment in the system.
A、主要性能特點：
A、 Main performance characteristics:
1、采用爐體橇、循環泵橇、膨脹罐鋼架橇、注油泵橇、氮封橇五大橇塊模式供貨。并接受用戶的特殊訂貨。
1. We supply using five main sled modes: furnace body sled, circulation pump sled, expansion tank steel frame sled, oil injection pump sled, and nitrogen sealing sled. And accept special orders from users.
2、高靜壓的泵入口壓力設計，脫水效果快，系統運行性大大增強。
2. High static pressure pump inlet pressure design, fast dehydration effect, greatly enhances system operation.
3、專利設計的熱備用循環泵功能，在極低環境中可以迅速順利啟動投入運行。
3. The patented hot standby circulation pump function can be quickly and smoothly started and put into operation in extremely low environments.
4、熱媒爐盤管采用彈簧式設計，有效吸收熱膨脹，防止冷熱膨脹導致的爐墻或盤管損壞，保證盤管的安全。
4. The heat medium furnace coil adopts a spring type design, effectively absorbing thermal expansion, preventing damage to the furnace wall or coil caused by cold and hot expansion, and ensuring the safety of the coil.
5、最優的流程設計，排氣迅速有效，整個系統無需再設計排氣口，投運順利快捷。
5. Optimal process design, rapid and effective exhaust, no need to design exhaust ports for the entire system, smooth and fast operation.
6、關鍵保護儀表為進口儀表，德國品質。
6. The key protective instruments are imported instruments of German quality.
7、出口溫度高，100~320℃，滿足眾多用戶的需要。
7. The export temperature is high, ranging from 100 to 320 ℃, meeting the needs of many users.
8、成熟穩定的pid控制參數，系統輸出溫度溫度波動小，小于±1℃。
8. Mature and stable PID control parameters, with minimal temperature fluctuations in the system output, less than ± 1 ℃.
9、熱媒爐前后墻為開啟式結構，便于爐管清洗和維護。
9. The front and rear walls of the heat medium furnace are of an open structure, which facilitates the cleaning and maintenance of the furnace tubes.
10、 燃料系統廣泛，渣油、重油、輕油、天然氣、城市煤氣以及化工工藝廢氣。
10. The fuel system is extensive, including residual oil, heavy oil, light oil, natural gas, city gas, and chemical process waste gas.
11、 提供穩定的低壓高溫?zé)嵩矗夷軐?shí)現一套系統提供多溫位熱源。
11. Provide stable low-pressure and high-temperature heat sources, and enable a system to provide multi temperature heat sources.
12、 系統熱負荷自動調節、連續運行；系統全自動運行無人值守。
12. Automatic adjustment of system heat load and continuous operation; The system runs fully automatically without human supervision.
13、 系統介質實現自動補償、自動調節。
13. The system media achieves automatic compensation and adjustment.
14、 實現遠程的DCS控制。
14. Implement remote DCS control.
